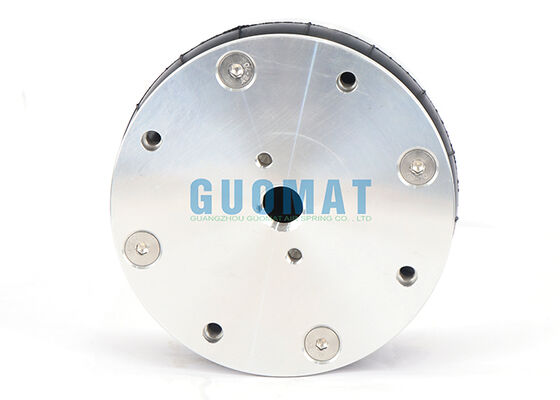

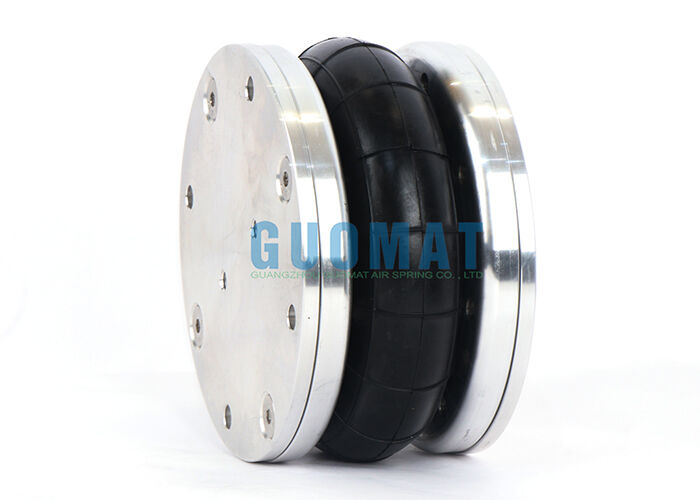

6''X1 Firestone Rubber Air Bellow W01R584078 FS 76-7 DI Contitech Air Spring Replacement

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	1B6X1P

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	US$89.9-99.9/PC
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	3-7 영업일
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력:	1000pcs/주

상세 제품 설명

패키지:	강력한 상자	보증기간:	12개월
스프링 소재:	고무	공기 스프링 유형:	단일 복잡한 유형
파이어스톤:	W01-R58-4078	콘티텍:	FD 75-7 DI
색상:	검은색	품질:	양질
강조하다:	Firestone rubber air spring replacement , 6x1 Contitech air bellow , W01R584078 air spring

6"×1 Firestone Rubber Air Bellow W01R584078 FS 76-7 DI Contitech Air Spring Replacement

The GUOMAT 1B6X1P 6-inch × 1 industrial air spring is a high-performance rubber air bellow designed as a direct replacement for Firestone W01R584078 and Contitech FS 76-7 DI models. It is widely used in industrial vibration isolation, machinery suspension systems, and light-duty vehicle air suspension applications.

Engineered with premium reinforced rubber and durable metal end caps, this single convoluted air spring delivers excellent load-bearing capacity, stable damping performance, and long service life even under continuous dynamic working conditions.

Replacement Part Numbers

Continental ContiTech: FS 76-7 DI CR / FS76-7DICR / FS767DICR
Continental ContiTech: FS 76-07 DI G1/2 CR / FS76-07DI G1/2 CR
Continental ContiTech Bellow: FS 76-7 / FS76-7 / FS767
Firestone No.: W01-R58-4078 / W01 R58 4078 / W01R584078
Firestone Style: 6" x1 / 6"x1 / 6x1
Goodyear: 1B6-2052 / 1B6 2052 / 1B62052
Goodyear Flex No.: 578-91-3-2050 / 578 913 2050 / 5789132050
Dunlop FR: SP1645 (COMPOSITE)
Dunlop FR: SP2913 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 01 01 / A313300101
Norgren: PM/31061 / PM 31061 / PM31061
Nominal Size: 6" x1 / 6"x1 / 6x1

Technical Specifications

Air Inlet	G1/2
Bolt Hole Distance	127 mm
Max Diameter	175 mm
Design Height	80-90 mm
Min Height	50 mm
Max Height	105 mm
Working Pressure	0-8 bar
Operating Temperature	-40°C to +70°C

Key Features

High-Quality Rubber Construction: Manufactured from reinforced natural rubber, offering excellent fatigue resistance, superior elasticity, and stable performance under high-frequency vibration.
Superior Vibration Damping: Effectively reduces vibration, noise, and shock, protecting equipment and enhancing operational stability.
Adjustable Load-Bearing Capacity: Load capacity can be adjusted by varying air pressure, providing flexible suspension control for industrial systems.
