6" x 1 W01R584052 Firestone Air Bellows Replacement FS 76-7 DS Contitech Air Spring Assembly

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	1B6X1T

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	US$169.9-199.9/PC
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	3-7 영업일
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력:	1000pcs/주

상세 제품 설명

이름:	고무 공기 스프링	파이어스톤 NO.:	W01R584052
내식성:	훌륭한	구조:	단일 복잡
부분:	공기 스프링	선박:	전 세계
상태:	아주 새로운	보증:	1년
강조하다:	Firestone air spring assembly , W01R584052 air bellow replacement , Contitech suspension air spring

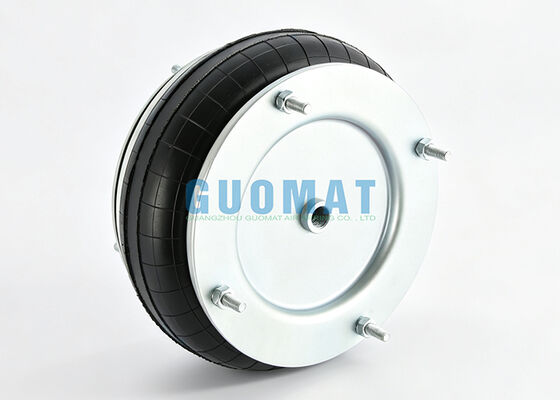

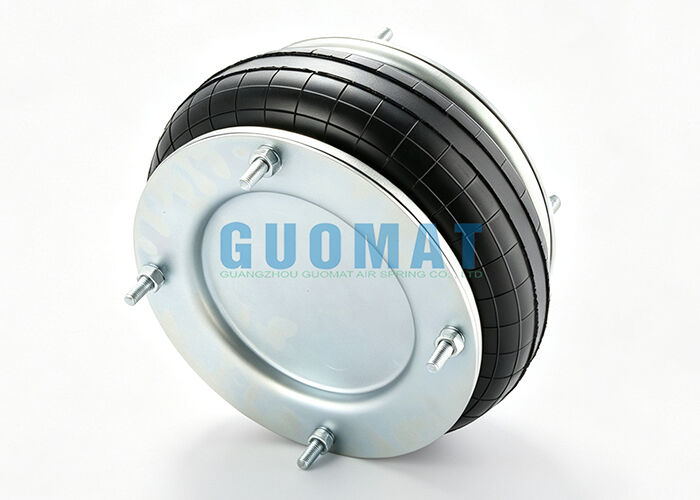

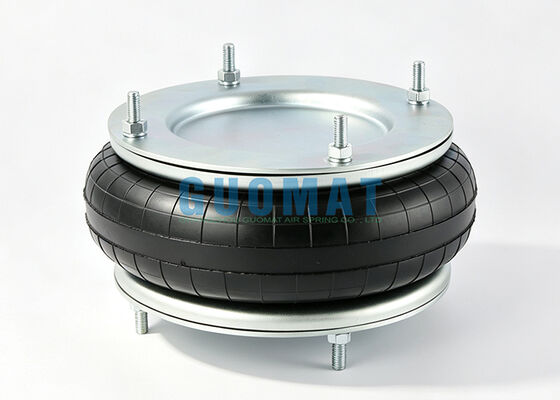

6" x 1 W01R584052 Firestone Air Bellows Replacement

GUOMAT 1B6X1T is a high-quality single convoluted air spring designed as a direct replacement for Firestone W01R584052 (6" x 1) and Contitech FS 76-7 DS industrial air spring assemblies. Engineered for stable load support, vibration isolation, and long service life in demanding industrial and commercial applications.

Manufacturing & Applications

Manufactured with reinforced natural rubber and high-strength steel end plates, this air bellows ensures reliable performance under continuous dynamic working conditions. Widely used in machinery, automation systems, and industrial vibration control equipment.

OEM Compatibility & Part Numbers

Continental ContiTech: FS 76-7 1/2 M10, FS 76-7 DS CR/FS76-7DSCR, FS 76-07 DS G1/2 CR, FS 76-7/FS76-7/FS767

Firestone: W01-R58-4052/W01 R58 4052/W01R584052

Firestone Style: 6" x1/6"x1/6x1

Dunlop FR: SP153

Dunlop UK (Pneuride): PNP 30551 0113/PNP305510113

Norgren: M/31061/ M 31061/ M31061

Nominal Dimensions: 6" x1/6"x1/6x1

Technical Specifications

Type	Single Convoluted Air Spring
Working Pressure	0-8 bar
Air Inlet	G 1/2
Cover Plate Diameter	153.5 mm
Bolt Pattern	4 × M10
Screw Center Distance	127 mm
Maximum Diameter	175 mm
Design Height	85 mm
Minimum Height	50 mm
Maximum Height	105 mm
Stroke	approx. 55-65 mm
Working Temperature	-30°C to +70°C

Quality Assurance

GUOMAT provides reliable aftermarket air spring solutions with OEM-level compatibility. Each unit undergoes rigorous testing for leakage, fatigue resistance, and load performance before shipment, ensuring consistent quality and stable operation in real working environments.
