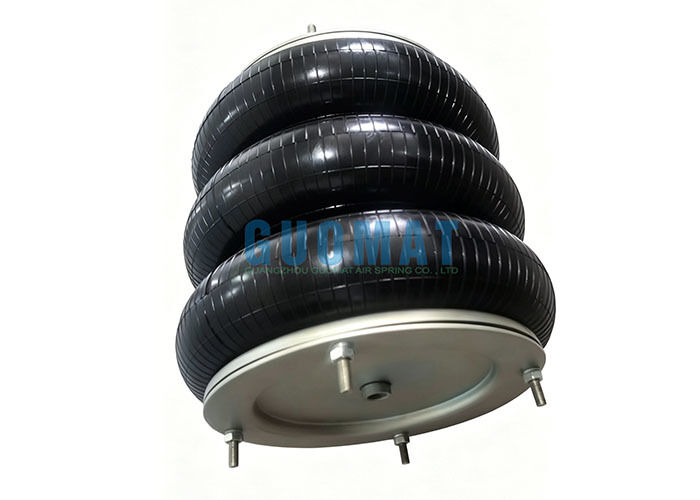

14 1/2''1x3 W01R584065 Firestone Rubber Air Spring FT 614-36 DS Contitech Industrial Air Bag

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	3B14.5x3t

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	협상 가능
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	2-8 근무일
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력:	1000pcs/주

상세 제품 설명

작동 온도:	-40℃+70℃	견본:	사용 가능
유연성:	좋은	목:	고무 에어 스프링
기능:	진동을 줄입니다	품질:	100% 테스트됨
OEM 번호.:	파이어스톤 W01-R58-4065	컨볼 루션:	3
강조하다:	14 1/2 inch Firestone rubber air spring , W01R584065 industrial air bag , FT 614-36 DS Contitech air spring

14 1/2" 1x3 W01R584065 Firestone Rubber Air Spring FT 614-36 DS Contitech Industrial Air Bag

Product Overview

GUOMAT 3B14.5X3 is a high-quality single convoluted rubber air spring designed as a direct replacement for Firestone W01R584065 and ContiTech FT 614-36 DS industrial air bags. Manufactured with premium natural rubber and reinforced cord fabric, this air spring provides excellent vibration isolation, shock absorption, and load support performance for demanding industrial applications.

Product Specifications

Type: Rubber Air Spring

Model: 3B14.5X3T

Corresponding OEM Numbers

Firestone: W01R584065 / W01 R58 4065 / W01-R58-4065

Firestone: 14.5X3 / 14 1/2"1x3

Contitech: FT614-36DS / FT 614-36DS / FT 614-36 DS

Norgren: M/31143 / M 31143 / M31143

Parker: 9109069

Product Features

14 1/2" × 3 single convoluted construction for stable force output
Reliable operation under continuous dynamic loading conditions
Superior flexibility compared to conventional steel springs
Adjustable load capacity for versatile applications
Reduced noise transmission and improved machinery protection
Efficient air chamber design for even load distribution
Minimizes impact forces during machine operation
Extends equipment life and improves production efficiency

Applications

GUOMAT 3B14.5X3 is widely used in molding equipment, die cushion systems, industrial presses, automation machinery, material handling equipment, and vibration isolation platforms.

Construction & Durability

The reinforced rubber bellows construction ensures excellent resistance to fatigue, wear, and harsh industrial environments. Designed to meet OEM performance requirements, this air spring provides easy installation and compatibility with existing systems, making it a cost-effective and dependable alternative to original equipment manufacturers.

Cross-Reference Compatibility Table

Type	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
4 1/2" x 1	W01R584050	4 1/2" x 1	SP2334	FS 44-5 DI	PM/31041	9109400
4 1/2" x 2	W01R584051	4 1/2" x 2	SP2441	FD 44-10 DI	PM/31042	9109401
4 1/2" x 3-E	W01R584035	4 1/2" x 3	SP2895	FT 44-15 DI	PM/31043	9109402
6" x 1	W01R584078	6" x 1	SP2913	FS 76-7 DI	PM/31061	9109004A
6" x 1	W01R584052	6" x 1	SP1536	FS 76-7 DS	M/31061	9109004
6" x 2	W01R584070	6" x 2	SP2917	FD 76-14 DI	PM/31062	9109001A
6" x 2	W01R584053	6" x 2	SP1482	FD 76-14 DS	M/31062	9109001
6" x 3		6" x 3	SP2923	FT 76-20 DI	PM/31063	9109007A
6" x 3	W01R584095	6" x 3	SP2861	FT 76-20 DS	M/31063	9109007
8" x 1	W01R584054	8" x 1	SP1537	FS 138-8 DS	M/31081	9109014
8" x 2	W01R584055	8" x 2	SP1490	FD 138-18 DS	M/31082	9109011
8" x 3	W01R584056	8" x 3	SP2863	FT 138-26 DS	M/31083	9109017
10" x 1	W01R584057	10" x 1	SP2523	FS 210-10 DS	M/31101	9109024
10" x 2	W01R584058	10" x 2	SP1538	FD 210-22 DS	M/31102	9109021
10" x 3	W01R584059	10" x 3	SP1539	FT 210-32 DS	M/31103	9109031
12" x 1	W01R584060	12" x 1	SP1540	FS 412-10 DS	M/31121	9109044
12" x 2	W01R584061	12" x 2	SP1541	FD 412-22 DS	M/31122	9109041
12" x 2-E	W01R584039	12" x 2 Extend.
12" x 3	W01R584062	12" x 3	SP1542	FT 412-32 DS	M/31123	9109051
14" 1/2 x 1	W01R584063	14" 1/2 x 1	SP1543	FS 614-13 DS	M/31141	9109064
14" 1/2 x 2	W01R584064	14" 1/2 x 2	SP1556	FD 614-26 DS	M/31142	9109061
14" 1/2 x 3	W01R584065	14" 1/2 x 3	SP1558	FT 614-36 DS	M/31143	9109069
16" x 1	W01R584066	16" x 1		FS 816-15 DS	M/31161	9109026
16" x 2	W01R584067	16" x 2	SP1557	FD 816-30 DS	M/31162	9109171
16" x 3	W01R584068	16" x 3	SP2141	FT 816-40 DS	M/31163	9109177
21" 1/2 x 2		21" 1/2 x 2	SP1408		M/31212	9109153
26" x 2		26" x 2	SP2342		M/31262	9109159
