3B7330 Triple Convoluted Air Spring 157.5mm Center Distance Rubber Air Bellows

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	3B7330

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	$79.9-89.9/pc
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	2-8 근무일
지불 조건:	T/T, 서부 동맹, L/C
공급 능력:	1000pcs/주

상세 제품 설명

제품명:	고무 에어 스프링	보증:	12개월
재료:	고무 및 강철	다른 이름:	충돌 풍선
압력 능력:	0.2-0.8 Ｍ PA	무게:	6.5kg
포장 크기:	242424(cm)	컨볼 루션:	3
강조하다:	triple convoluted air spring , rubber air bellow 157.5mm , air spring with center distance

3B7330 Triple Convoluted Air Spring

157.5mm Center Distance Rubber Air Bellows

Product Overview

Product Name: Rubber Air Spring
Brand: GUOMAT
Part Number: 3B7330
Material: Rubber and Steel
Warranty: 1 Year
Minimum Order: 1 piece
Application: Universal
Function: Lifting
Delivery Time: 3-7 Working Days

Technical Specifications

Top and Bottom Cover Diameter: 228mm
Center Distance of Threaded Holes: 157.5mm
Threaded Hole Size: M8
Maximum Outer Diameter: 325mm
Maximum Height: 430mm
Minimum Height: 110mm

Available Configurations

Rubber bellows only
With top plate and G1 air inlet (66mm eccentricity)
With top plate and G1/4 air inlet (73mm eccentricity)
With stainless steel plate and G3/4 air inlet (73mm eccentricity)

Performance Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Volume B(I)
380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
140	17.0	22.4	28.1	33.6	39.1	44.7	7.5

Key Advantages

Vibration Control: Absorbs shocks and reduces transmission to surrounding equipment
Adjustable Load Support: Air pressure can be adjusted to match different load requirements
Equipment Longevity: Reduces mechanical stress and extends the lifespan of machinery components
Noise Reduction: Provides quieter operation compared to metal springs or rigid mounts

Cross-Reference Compatibility: GUOMAT 3B7330 can replace Contitech FT330-29 and Contitech FT 330-29

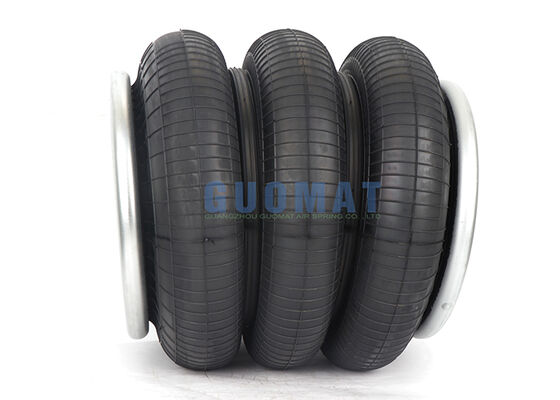

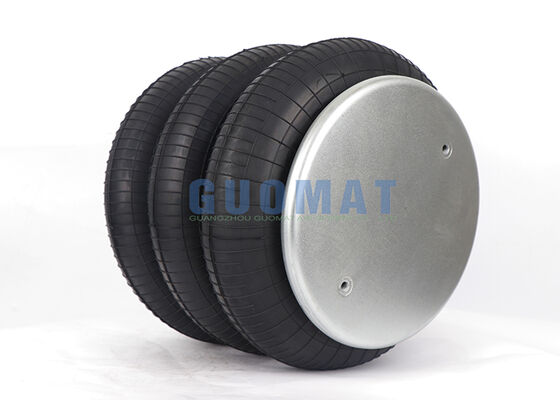

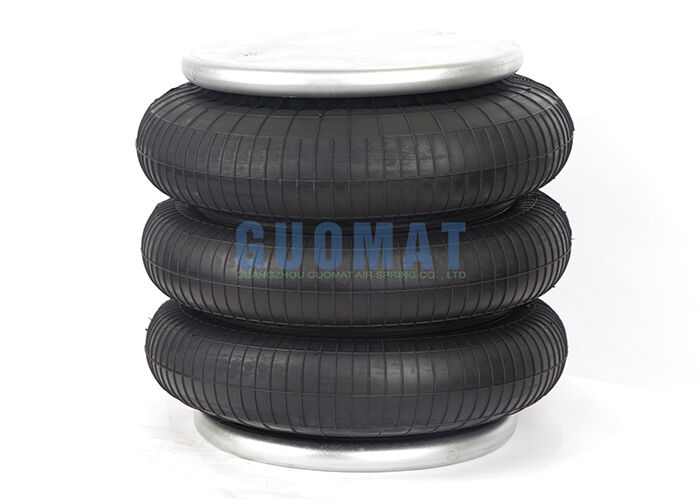

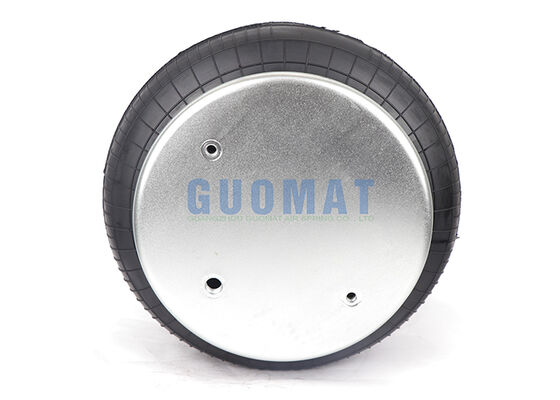

Product Images
