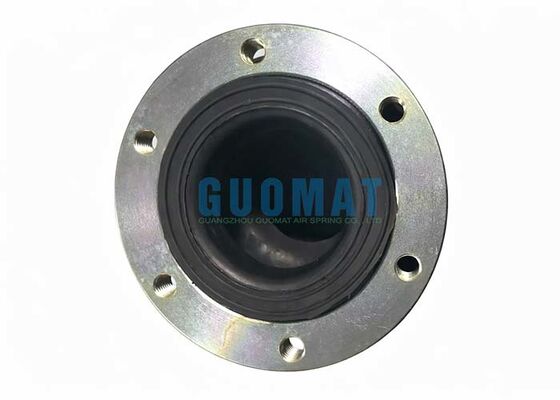

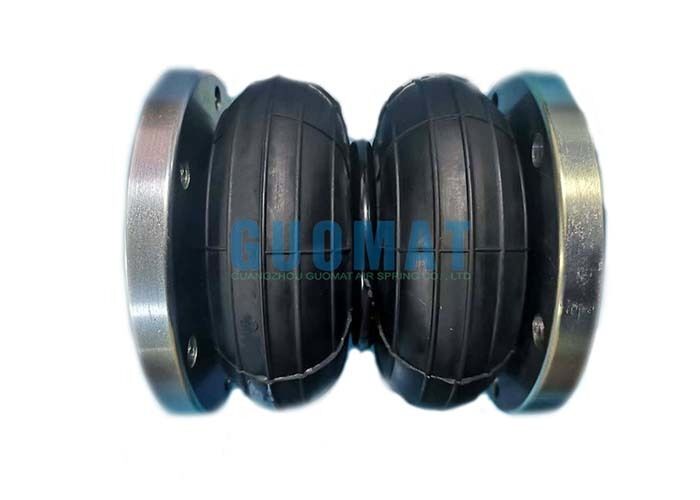

2H160166 Double Convoluted Industrial Air Spring 108mm Stroke Air Shock Suspension

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	2H160166

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	$99.9-159.9/pc
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	2-8 근무일
지불 조건:	T/T, 서부 동맹, L/C
공급 능력:	1000pcs/주

상세 제품 설명

재료:	고무 + 스틸	애플리케이션:	산업용 장비
견본:	사용 가능	운송 패키지:	판지
작업:	가스 충전	구오 마트:	2H160166
강조하다:	double convoluted industrial air spring , 108mm stroke air shock suspension , industrial air spring with warranty

2H160166 Double Convoluted Industrial Air Spring 108mm Stroke Air Shock Suspension

Product Overview

The 2H160166 air spring features a double convoluted (2H type) design, providing higher load capacity and improved vertical stability compared with single-convoluted structures. Using compressed air as the elastic medium, it delivers smooth motion, effective vibration isolation, and adjustable stiffness for various industrial applications.

Technical Specifications

Top flange diameter	160mm
Top threaded holes	6pcs XM10
Center distance between top threaded holes	135mm
Bottom flange diameter	146mm
Bottom threaded holes	6pcs XM10
Center distance between bottom threaded holes	135mm
Maximum outer diameter	175mm
Natural height	166mm
Minimum height	82mm
Maximum height	190mm
Stroke	108mm

Load Capacity & Performance Data

Installation Height (mm)	Carrying Capacity at Inflation Pressure (MPa)							Volume at 0.7MPa (dm³)
	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa
82	364	538	713	892	1071	1251	1430	0.86
116	262	397	537	674	815	950	1095	1.27
150	190	290	391	490	597	700	802	1.64
166	149	237	325	413	502	593	684	1.77
190	76	128	180	233	287	342	398	1.92
201	23	55	83	111	148	183	220	1.95

Stiffness and Frequency at Design Height
Inflation Pressure (MPa)	0.2	0.3	0.4	0.5	0.6	0.7	0.8
Vertical Stiffness (Kg/cm)	39	54	72	89	107	125	138
Natural Frequency (Hz)	2.56	2.4	2.35	2.33	2.31	2.3	2.25
Natural Frequency (cpm)	154	144	141	140	139	138	135

Key Features

High Load Capacity Double Convoluted Design: The two-layer bellows structure increases effective air volume and provides improved load-bearing capability while maintaining compact installation height.
108mm Effective Stroke: Provides sufficient vertical travel for vibration absorption, machine leveling, and short-stroke linear actuation.
Durable Reinforced Rubber Bellows: Manufactured from multi-layer cord-reinforced elastomer to ensure resistance to fatigue, cracking, and pressure cycling.
Adjustable Stiffness and Height: Air pressure can be adjusted to fine-tune load support, vibration isolation performance, and operating height.
Maintenance-Free Operation: Unlike mechanical springs, air springs require minimal maintenance and provide longer service life under proper operating conditions.

Product Drawing
