W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	1T9030

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	$79.9-99.9/pc
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	2-8 근무일
지불 조건:	L/C, T/T, 웨스턴 유니온
공급 능력:	1000pcs/주

상세 제품 설명

목:	트럭 조립 공기 스프링	재료:	고무+강철
보증:	1년	애플리케이션:	트럭 / 트레일러 / 세미 트레일러를 위해
유니버설 비품:	직접 교체	유형:	공기 스프링
파이어스톤:	1T15M-0 / W01-358-9030	나사 구멍:	3/8-16UNC
강조하다:	Firestone air ride springs 1/4 NPT , truck air suspension parts , Firestone air springs with fitting

W01-358-9030 Firestone Air Ride Springs 1/4 NPT Air Fitting Truck Air Suspension Parts

The 1T9030 air ride spring is a heavy-duty reversible sleeve air spring designed for commercial truck air suspension systems. It helps maintain vehicle ride height, absorb road shock, and support dynamic load changes to ensure stable and comfortable operation in demanding transport environments.

Part Number:

1T9030

Material:

Rubber and Steel

Warranty:

1 Year

Application:

Truck Suspension

Function:

Reduce Vibration

Cross-Reference Part Numbers

Firestone Style Number

1T15M-0

Firestone Assembly Numbers

W013589030
W01 358 9030
W01-358-9030
WO13589030
WO1 358 9030
WO1-358-9030

Related Part Numbers

Blind nuts, 1/4NPT: W013589030, W01 358 9030, W01-358-9030
Blind nuts, 1/4NPT, rubber bumper: W013589031, W01 358 9031, W01-358-9031
Blind nuts, 3/4NPT: W013589034, W01 358 9034, W01-358-9034
Blind nuts, 3/4NPT, rubber bumper: W013589036, W01 358 9036, W01-358-9036
Countersunk steel bead ring, 1 3/8 bolts, nuts, washers: W013589038, W01 358 9038, W01-358-9038
Integral studs, 1/4NPT: W013589035, W01 358 9035, W01-358-9035

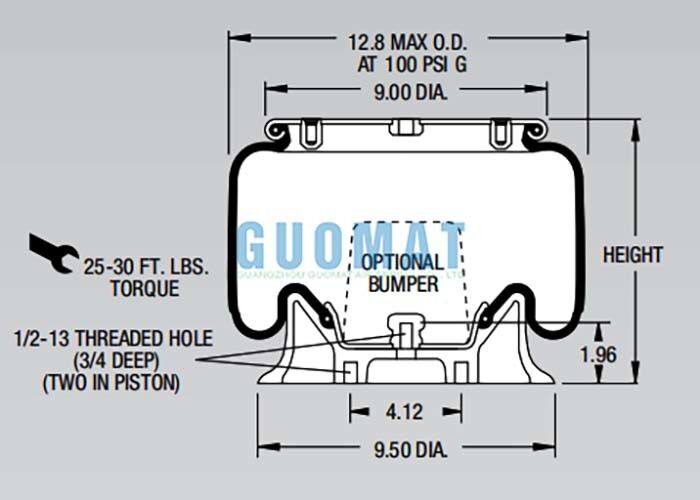

Technical Specifications

Top Cover Diameter:

9.00 inches

Top Cover Bolts:

Two 3/8-16 bolts, 6.20 inches center-to-center

Vent:

1/4 NPT, 2.88 inches center-to-center from threaded holes

Base Diameter:

9.50 inches

Base Height:

1.96 inches

Base Bolts:

Two 1/2-13 bolts, 4.12 inches center-to-center

Natural Height:

7.50 inches

Maximum Height:

13.00 inches

Minimum Height:

4.30 inches

Performance Data

Assembly Height (in.)	Volume @ 100 PSIG (in³)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
11	737	980	1920	2980	4120	5300
10	675	1180	2380	3550	4810	6130
9	606	1270	2540	3910	5290	6710
8	534	1300	2630	4080	5500	6950
7	462	1320	2690	4140	5570	7010
6	389	1350	2730	4170	5610	7070
5	314	1410	2840	4310	5840	7370

Benefits of Air Springs in Truck Suspension

Maintaining consistent chassis height
Reducing stress on leaf springs and frame components
Improving braking stability and tire contact
Enhancing driver comfort during long-distance hauling

Unlike conventional steel springs, air springs offer adjustable stiffness and better vibration damping, which is why they are widely adopted in commercial vehicles.
