1S5-038 Goodyear Cab Suspension Air Spring ASC-08-7-194 Piston Rubber Air Bag For Commercial Trucks

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	G5038

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	$49.9/pc-$89.9/pc
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	2-8 근무일
지불 조건:	T/T, 웨스턴 유니온, L/C, 페이팔, 기타 협상
공급 능력:	10000Pcs/주

상세 제품 설명

제품:	캐빈 공기는 상승합니다	재료 유형:	충돌 / 강철
보증:	12개월	위치:	운전석의 좌석
모양:	슬리브 스타일	굿이어:	1S5-038
피스톤 번호:	ASC-08-7-194	애플리케이션:	트럭용
강조하다:	Goodyear cab suspension air spring , commercial truck air bag , piston rubber cab shock absorber

1S5-038 Goodyear Cab Suspension Air Spring ASC-08-7-194 Piston Rubber Air Bag For Commercial Trucks

Product Description

Truck cab air springs are designed to isolate vibration and absorb road shocks between the chassis and the cab. By maintaining stable cab height and improving ride comfort, they help protect drivers from fatigue and ensure smoother, safer operation in commercial vehicles.

Product Specifications

Brand: GUOMAT
Model Number: G5038
Application: For Truck Cabin

Cross-Reference Part Numbers

GOODYEAR: 1S5-038, 1S 5-038, 1S5 038, ASC-08-7-194, ASC 08 7 194, ASC087194
FIRESTONE: 7081, W02-358-7081, W02 358 7081, W023587081
LINK CAB & SEAT SPRING: 1101-0043

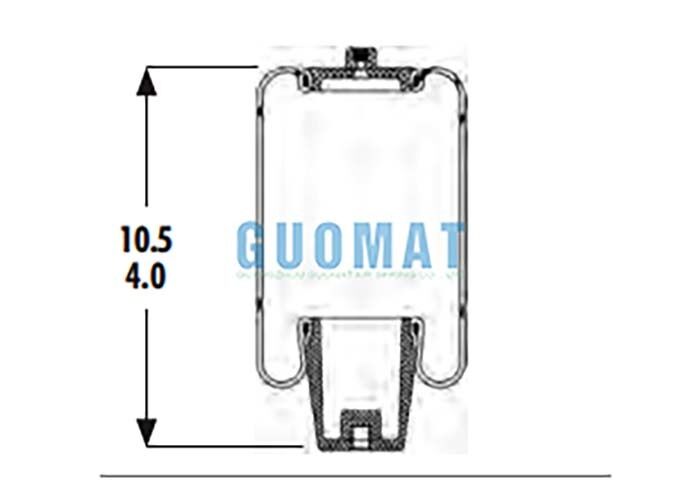

Technical Specifications

Specification	Value
Top Plate Hole/Stud Quantity	1
Top Plate Diameter	2.65
Top Plate C to C Diameter	N/A
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	2.12
Bottom Plate Alignment	Parallel
Bumper	No
Minimum Height	4
Maximum Height	10.5

When to Replace Truck Cab Air Springs

Cab air springs are designed to provide long-term vibration isolation and load support, but like all rubber and pneumatic components, they gradually wear out over time. Operating a truck with a damaged or leaking air spring can negatively affect ride comfort, suspension alignment, and driver safety.

Common Replacement Indicators

Visible cracks or dry rot on the rubber sleeve caused by continuous exposure to road debris, temperature changes, and aging
Air leakage or inability to maintain pressure - if the cab slowly sinks when parked or requires frequent air refilling
Increased cab vibration or harsh ride quality - worn air springs lose damping ability, transmitting more road shock to the cab
Uneven cab height or leaning cab position - affecting driver visibility and suspension geometry

Risks of Using Damaged Air Springs

Continuing to use worn or leaking air springs can lead to:
