| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949, ISO9001 |
| 모델 번호: | 2B6107 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | US$59.9-69.9/PC |
| 포장 세부 사항: | 강력한 카톤 박스 또는 고객 요구 사항 |
| 배달 시간: | 5-8 영업일 |
| 지불 조건: | L/C, D/A, D/P, Western Union |
| 공급 능력: | 1000pcs/주 |
| 품질: | 100 % 테스트 | 애프터 서비스: | 12개월 |
|---|---|---|---|
| 에어 홀: | 1/4 BSP | Firestone: | W01-M58-6107 |
| 컨볼 루션: | 2 | 연결 방법: | 블라인드너트 |
| Max.Height: | 394 밀리미터 | 최소, 신장: | 77 밀리미터 |
| 강조하다: | Firestone Suspension Air Spring,Double Convoluted Air Spring,1/4 BSP Rubber Bellows |
||

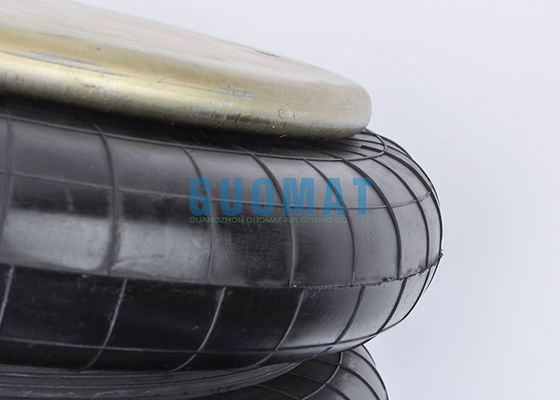

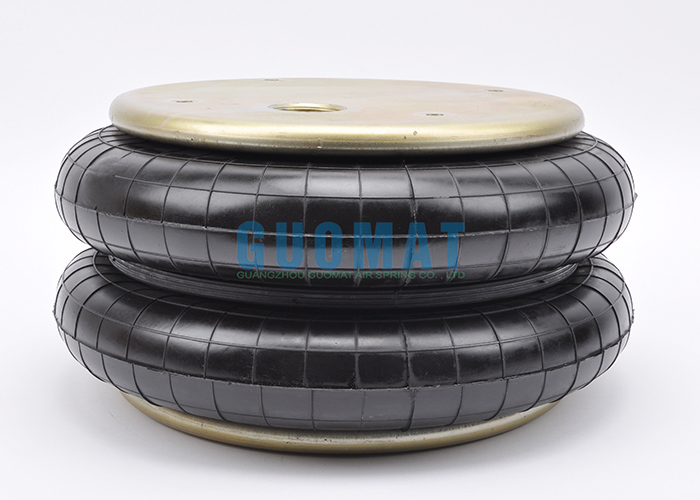

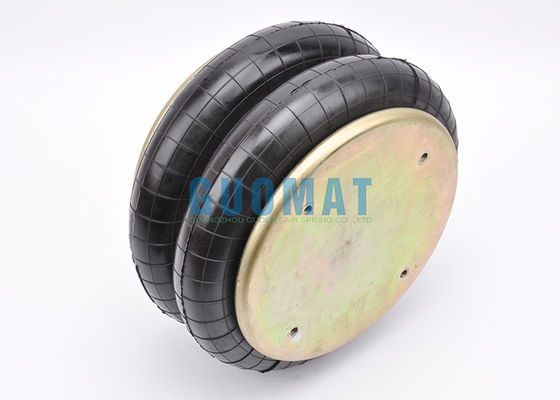

The GUOMAT 2B6107 is a double-curved air spring with the exact same specifications as the Firestone W01-M58-6107. Its signature "gourd-shaped" design provides excellent stability and flexible travel through a central waist ring.
It is primarily used in the suspension systems of commercial vehicles such as buses and trucks. Its core function is to dampen road vibrations, automatically adjust the vehicle height, thereby improving ride comfort, protecting cargo, and maintaining vehicle stability. This is a highly reliable component designed specifically for heavy-duty operating conditions.
| Top Cover Plate Diameter | 287 mm |
| Screw Center Distance of Top Cover Plate | 159 mm |
| Bottom Cover Plate Diameter | 287 mm |
| Screw Center Distance of Bottom Cover Plate | 159 mm |
| Top Cover Plate Threaded Hole | M8X1.25 |
| Bottom Cover Plate Screw(Nut) Tooth | M8X1.25 |
| Air Hole | 1/4BSP |
| Rubber Bellow Max. Diameter | 394 mm |
| Minimum Height | 77 mm |
| Maximum Height | 394 mm |
| Assembly Height (mm) | Volume@7 BAR (cu cm) | kN Force | @3BAR | @4BAR | @5BAR | @6BAR | @7BAR | @8BAR |
|---|---|---|---|---|---|---|---|---|
| 320 | 26307 | 560 | 14.44 | 50.52 | 26.35 | 33.20 | 39.23 | |
| 280 | 23714 | 653 | 17.82 | 24.56 | 31.24 | 38.87 | 45.73 | |
| 240 | 20846 | 729 | 20.39 | 27.85 | 35.13 | 43.41 | 51.04 | |
| 200 | 17673 | 799 | 22.69 | 30.81 | 38.73 | 41.65 | 55.94 | |
| 160 | 14250 | 859 | 24.68 | 33.30 | 41.87 | 51.34 | 60.11 | |
| 120 | 10748 | 892 | 25.94 | 34.86 | 43.76 | 53.44 | 62.41 | |
| 80 | 6382 | 889 | 26.62 | 35.40 | 44.31 | 53.60 | 62.25 |
