전자 우편으로 보내세요 :linda@662n.com 떼를 지어 습격하세요 :+8613924100039(WhatsAPP)
위챗 :에어스프링그 스카이프 :궈맛

|
| 원래 장소: | 광동, 중국 |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949, ISO9001 |
| 모델 번호: | GF40/60-1 |
| 최소 주문 수량: | 5 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 강력한 카톤 박스 또는 고객 요구 사항 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | L/C, D/A, D/P, Western Union |
| 공급 능력: | 1000pcs/주 |
| 항목 번호: | GF40/60-1 | 재료: | 고무와 강철 |
|---|---|---|---|
| 스타일: | 한 개의 뒤엉킨 공기 스프링 | 부분: | 공기 스프링/공기 리프트/공기 서스펜션 |
| 견본: | 가능 | 맞춤형 요청 | OEM 번호: | 콘티텍 FS22-3 |
| 유형: | 가스 가득 | 색상: | 검은색 |
| 강조하다: | Contitech truck air spring,FD 120-17 dust removal equipment,industrial suspension air spring |
||

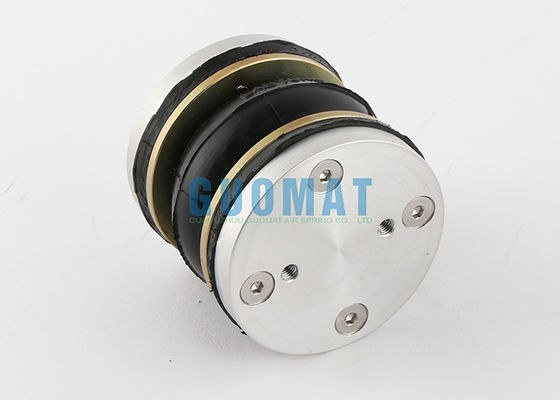

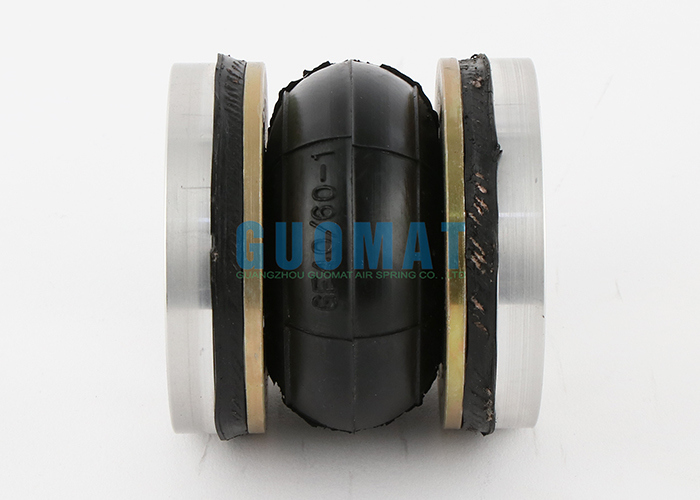

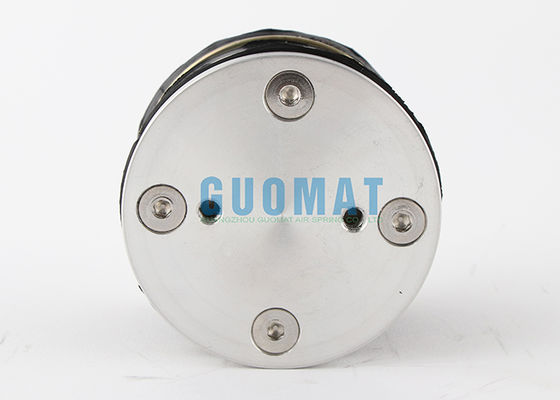

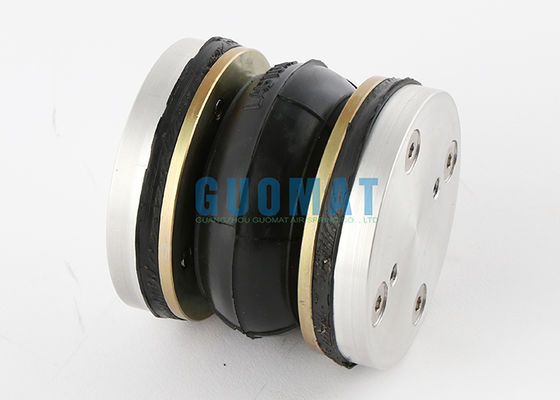

GF40/60-1 GUOMAT Single Convoluted Air Spring FS 22-3 DI CR Contitech Air Actuator
Product Specification
| Bottom Cover Plate | |
| Bottom Plate Center To Center Diameter | 60mm |
| Bottom Plate Diameter | 80mm |
| Bottom Plate Hole Quantity | 2 |
| Bottom Plate Type | Steel |
| Top Cover Plate | |
| Top Plate Center To Center Diameter | 60mm |
| Top Plate Diameter | 80mm |
| Top Plate Hole Quantity | 3 |
| Top Plate Type | Steel |
| Rubber Bellow | |
| Bellow Maximum Diameter | 80mm |
| Height | 60mm |
| Spring Type | Single Convoluted |
| Air Hole/Air Inlet/Gas Hole/Gas Fitting | |
| Air Inlet | G1/4 |
| Nut/Blind Nuts Type | M6 |
OE Manufacturer Number
Contitech FS22-3
Contitech FS 22-3
Contitech FS22-3 DI
Contitech FS 22-3 DI
Contitech FS22-3 DI CR
Contitech FS 22-3 DI CR
Summary of the Application Advantages of GF40/60-1 Air Springs
Superior Vibration Isolation: Low natural frequency effectively isolates low- and mid-frequency vibrations, a feature unmatched by steel springs.
Height Adjustability: The height and level of the equipment can be easily adjusted by inflating and deflating the air spring to adapt to different working conditions and loads.
Variable Stiffness Characteristics: Its stiffness changes with the load, allowing the system's natural frequency to remain relatively stable under varying loads, resulting in better vibration isolation.
High Load Capacity: A single air spring can withstand loads ranging from hundreds of kilograms to tens of tons.
Long Lifespan and Simple Maintenance: Compared to traditional metal springs and rubber vibration dampers, it has a longer lifespan and lower noise when used correctly.
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
