W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke

제품 상세 정보:

원래 장소:	중국 광둥
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	2B7781

결제 및 배송 조건:

최소 주문 수량:	6개
가격:	$89.9-99.9/pc
포장 세부 사항:	강한 판지 상자 또는 고객이 필요로 하는 대로
배달 시간:	3-7 영업일
공급 능력:	1000pcs/주

상세 제품 설명

품질:	100% 테스트됨	운송 패키지:	강력한 상자
보증:	12개월	부분:	공기 스프링
유형:	가스 충전	스프링형:	공기 스프링
파이어스톤:	W01-358-7781	굿이어:	2B12-427

W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke

Product Description

GUOMAT 2B7781 Double Convoluted Air Spring is a high-performance air suspension component designed to deliver superior load support, vibration isolation, and long service life. As a reliable replacement for Goodyear 2B12-427, this air bellow is widely used in truck suspension systems, industrial equipment, and heavy-duty applications requiring high stroke capability.

OEM Number

Contitech FD530-35 545

Contitech FD 530-35 545

Contitech 64607

Firestone Style: 233-2

Firestone No.: W01-358-7781

Firestone No.: W01 358 7781

Firestone No.: W013587781

Goodyear 2B12-427

Goodyear 2B12 427

FleetPride AS7781

Taurus 6412

Triangle AS-4545

TRP AS77810

Automann SP2B34RC-7781

Ridewell 1003587781C

Cush C-0083

2B7781 specifications and Technical Data
1. Nut/blind nut Top plate screw (nut) teeth: 4×3/8-16UNC
Top plate screw center distance: 159mm
2. Bottom cover plate screw (nut) teeth: 4x 3/8-16UNC
Bottom plate screw center distance: 159mm
2. Air hole/air inlet/air fitting air hole/air inlet: 3/4NPT
3. Top plate diameter (width): 289mm, bottom cover diameter (width): 289mm
4. Rubber bellows Max. diameter: 406mm
5. Min height: 104mm
Max. height: 391mm
6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Quality Assurance

Each air spring undergoes strict quality control processes, including:

100% air tightness testing
Fatigue and durability testing
Load performance inspection

We provide a 12-month warranty to ensure reliable performance and customer satisfaction.

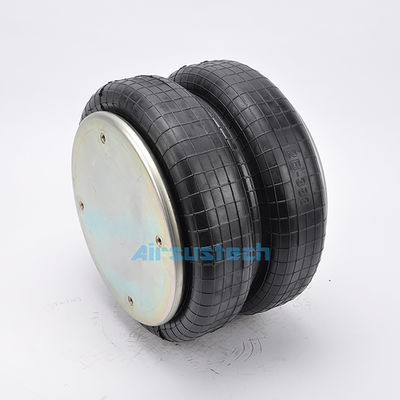

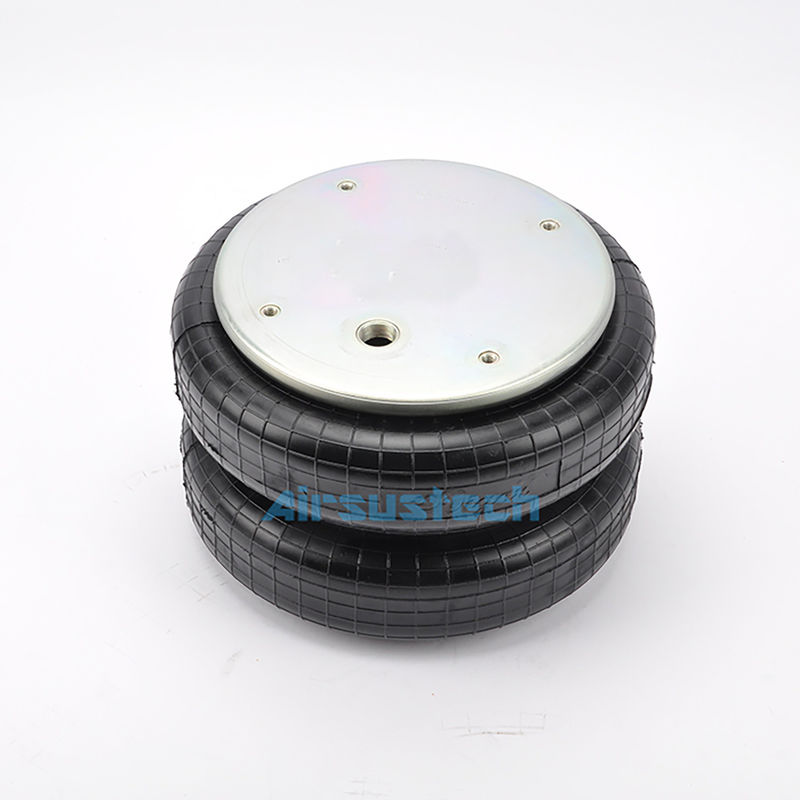

The Related Picture of 2B7781 Air Spring/Pneumatic Cylinder

W01-358-7781 Double Convoluted Air Spring 2B12-427 Goodyear Air Bellow Hight Stroke 0
