| 원래 장소: | 광동, 중국 |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949:2009 |
| 모델 번호: | 3B0263 |
| 최소 주문 수량: | 6pcs |
|---|---|
| 가격: | $79.9-89.9/pc |
| 포장 세부 사항: | 강력한 상자 상자 또는 고객이 필요로합니다 |
| 배달 시간: | 2-8 일 |
| 지불 조건: | T/T, Western Union, L/C. |
| 공급 능력: | 1000pcs/주 |
| 제품 이름: | 산업 공기 봄 | 보증: | 12 개월 |
|---|---|---|---|
| 재료: | 고무와 강철 | 다른 이름: | 충돌 풍선 |
| 압력 능력: | 0.2-0.8 Ｍ PA | Firestone: | W01-095-0263 |
| Contitech: | FT 530-35 849 | 무게: | 20.3kg |
| 강조하다: | Rubber air spring replacement,Contitech air suspension spring,FT 530-35 air balloon |
||
Rubber Air Balloon W01-095-0263 Suspension Air Spring Replacement Contitech FT 530-35 849
Product Description
Item Name: Suspension Air Spring
Brand: GUOMAT
GUOMAT NO.: 3B0263
Material: Rubber and Galvanizing
Warranty: 1 Year
MOQ: 1 pcs
Car Model: Universal
Application: Car Air Suspension
Function: Lifting
Delivery Time: 3-7 Working Days
Payment: T/T,Western Union, Paypal
Shipment: FedEx,UPS,DHL,EMS...
Technical Data
| Top Cover Plate Diameter:287mm |
| Bottom Cover Plate Diameter:287mm |
| Gas Hole / Air inlet:M22X1.5 |
| Rubber Bellows MAX Diameter:405mm |
| Rubber Bellows Natural Diameter:350mm |
| The Natural Height: 330mm |
| Top Cover Plate Screw (Nut) Tooth:4XM8X1.25 |
| Bottom Cover Plate Screw (Nut) Tooth:4XM8X1.25 |
| Screw Center Distance of Top Cover Plate:158.8mm |
| Screw Center Distance of Bottom Cover Plate:158.8mm |
| Screw And Gas Hole Distance of Top Cover Plate:79.4mm |
OEM Number / Cross Reference Number
Firestone Number: W01-095-0263
Firestone Number: W01 095 0263
Firestone Number: W010950263
Firestone Style: 333
Contitech Number: FT530-35 849
Contitech Number: FT 530-35 849
Goodyear Number: 578328630
Goodyear Number: 578 3 2 8630
Goodyear Number: 578338335
Goodyear Number: 578 3 3 8335
Contitech Triple Convoluted Air Spring
| Assembly No. | Bellows No. | Order No. |
| FT 330-29 413 | FT 330-29 | 64560 |
| FT 330-29 430 | FT 330-29 | 64561 |
| FT 330-29 431 | FT 330-29 | 64562 |
| FT 330-29 432 | FT 330-29 | 64563 |
| FT 330-29 434 | FT 330-29 | 64285 |
| FT 330-29 466 | FT 330-29 | 64565 |
| FT 330-29 469 | FT 330-29 | 64566 |
| FT 330-29 498 | FT 330-29 | 6457 |
| FT 330-29 503 | FT 330-29 | 64568 |
| FT 330-29 520 | FT 330-29 | 64570 |
| FT 330-29 525 | FT 330-29 | 64571 |
| FT 330-29 546 | FT 330-29 | 64572 |
| FT 330-29 547 | FT 330-29 | 64573 |
| FT 330-29 548 | FT 330-29 | 64574 |
| FT 330-29 554 | FT 330-29 | 66522 |
| FT 330-29 703 | FT 330-29 | 64648 |
| FT 330-29 714 | FT 330-29 | 67904 |
| FT 330-29 722 | FT 330-29 | 64709 |
| FT 330-29 723 | FT 330-29 | 64710 |
| FT 330-29 773 | FT 330-29 | 65978 |
| FT 330-29 790 | FT 330-29 | 69747 |
| FT 330-29 793 | FT 330-29 | 70418 |
| FT 330-29 821 | FT 330-29 | 70123 |
| FT 330-29 827 | FT 330-29 | 70419 |
| FT 330-29 832 | FT 330-29 | 70420 |
| FT 330-29 874 | FT 330-29 | 69630 |
| FT 330-29 875 | FT 330-29 | 69641 |
| FT 330-29 909 | FT 330-29 | 602419 |
| FT 330-29 975 | FT 330-29 | 74321 |

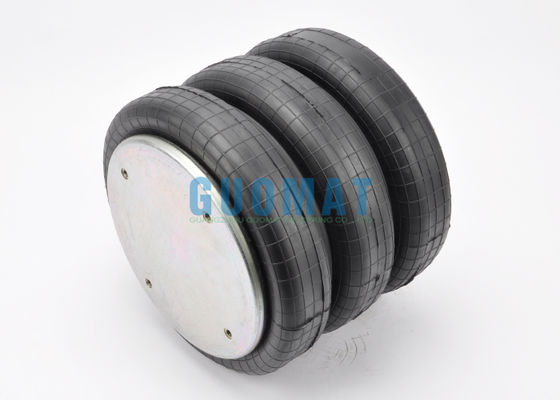

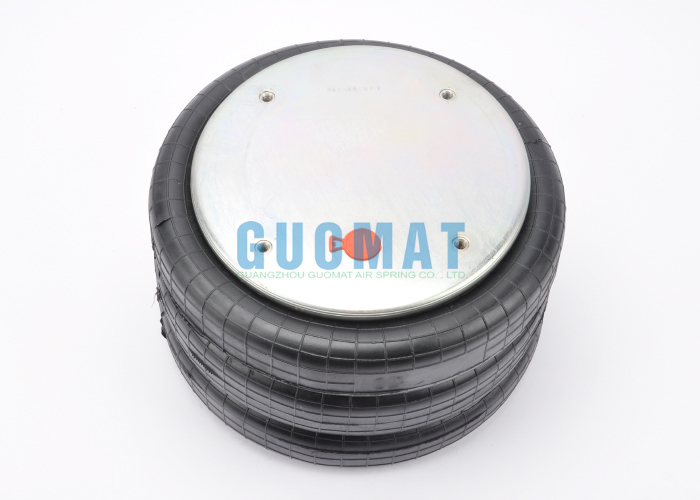

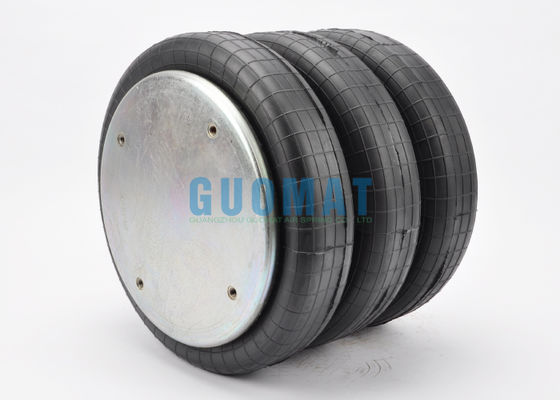

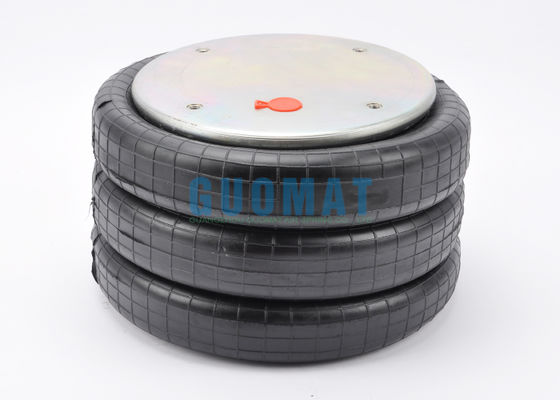

The Real Picture
