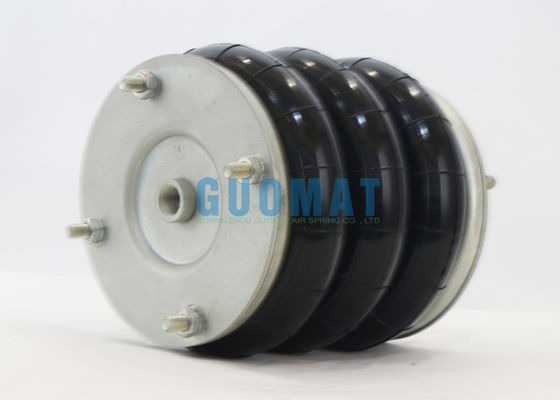

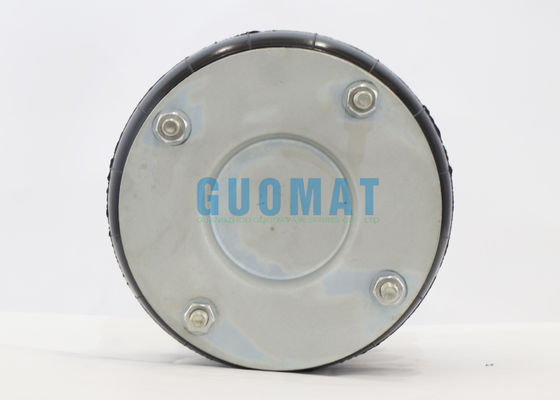

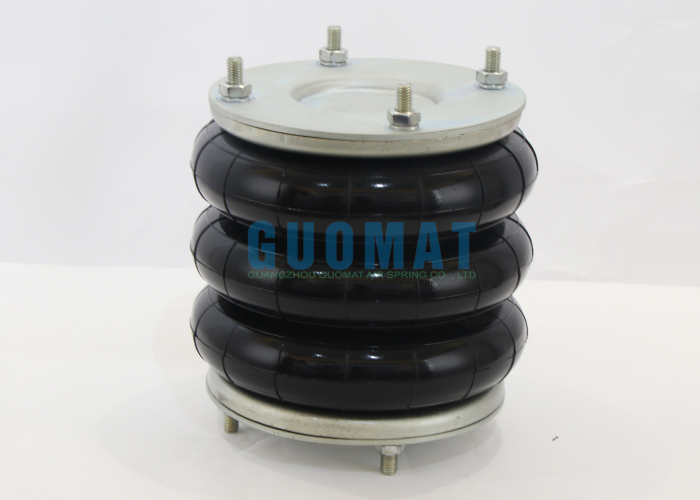

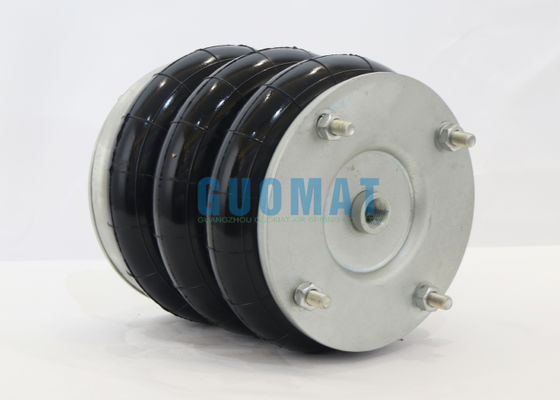

FT 138-26 DS Contitech Triple Convoluted Suspension Air Spring 8''X3 Rubber Air Bellows

제품 상세 정보:

원래 장소:	광저우, 중국
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	3B8X3T

결제 및 배송 조건:

최소 주문 수량:	5pcs
가격:	USD119.9-159.9/PC
포장 세부 사항:	강력한 카톤 박스 또는 고객 요구 사항
배달 시간:	3-7 일
지불 조건:	L/C, T/T, Western Union 또는 기타
공급 능력:	1000pcs/주

상세 제품 설명

모델 이름:	복잡한 에어 스프링	압력 능력:	0.2-0.8 Ｍ PA
HS 코드:	8708809000	재료:	고무와 강철
보증:	1 년	에어 피팅:	G1/4
Contitech:	ft 138-26	노그렘:	M/31083
강조하다:	Contitech triple convoluted air spring , 8x3 rubber air bellows , industrial suspension air spring

FT 138-26 DS Contitech Triple Convoluted Suspension Air Spring 8''X3 Rubber Air Bellows

Product Description

Factory: GUOMAT

Brand: GUOMAT

Model No.: 3B8X3T

Convolutions: 3

Material: Rubber and Steel

Warranty: 1 Year

OE Manufacturer

Continental ContiTech: FT 138-26 DS / FT138-26 DS / FT138-26DS

Continental ContiTech: FT 138-26 / FT138-26 / FT13826

Firestone No.: W01-R58-4056 / W01 R58 4056 / W01R584056

Firestone Style: 8''x3 / 8x3 / 8 x3

Dunlop FR: 8''x3 SP2863

Norgren: M/31083 / M31083 / M 31083

Nominal (inch)xconvolutions: 8''x3 / 8x3 / 8 x3

Parker: 8''x3 9109017

Product Advantages

Industrial air springs use compressed air as their elastic medium and achieve precise vibration damping through adjustable air chamber pressure. Compared to traditional metal springs and rubber shock absorbers, they offer three core advantages:

Higher Shock Absorption Efficiency: The vibration amplitude can be stably controlled within 0.5-5mm (adjusted according to operating conditions), and the absorption efficiency of high-frequency vibration (such as motor and fan operating vibration) reaches over 90%, effectively reducing wear on equipment components caused by vibration and extending the service life of core components (such as bearings and gears) by 30%-50%.

Adaptive Load Variation: By adjusting the air line pressure, they can adapt to different load scenarios from 50kg to 100t. The same model can meet the vibration damping needs of multiple equipment, avoiding the "one model for one device" limitation of traditional shock absorbers.

Low-Noise Operation: The air chamber structure significantly reduces the noise generated during vibration transmission, reducing operating noise by 15-25dB compared to traditional shock absorbers, helping industrial applications meet environmental noise standards (e.g., workshop noise ≤85dB).

Application Scenario Table of Industrial Air Springs

Application Field	Specific Adaptable Equipment	Core Function	Embodiment of Adaptive Advantages
General Machinery Manufacturing	Fans, Water Pumps, Compressors, Electric Motors	Absorb high-frequency vibrations during equipment operation, reduce noise, and protect core components such as bearings and gears	Vibration damping efficiency reaches over 90%, noise is reduced by 15-25dB, and the service life of components is extended by 30%-50%
Metallurgical Industry	Rolling Mills, Continuous Casting Machines, Metallurgical Cranes	Buffer impact loads from rolling, adapt to heavy-load working conditions, and withstand high-temperature and oil-contaminated environments	Supports a load range of 50kg-100t, temperature resistance of -40℃-120℃ (customized models reach -60℃-180℃), and chemical corrosion resistance
Automated Production Lines	Assembly Line Conveyor Platforms, Lifting Workbenches, Robot Bases	Dynamically adjust equipment height, compensate for installation errors, and ensure operation accuracy	Effective stroke ranges from 50-500mm, real-time air pressure adjustment is available, and installation efficiency is improved by over 40%
Mining and Construction Machinery	Vibrating Screens, Crushers, Mining Hoists	Reduce severe vibrations of equipment, minimize machine wear, and adapt to harsh dusty environments	Multi-layer cord-reinforced airbags with excellent fatigue resistance, service life of 8000-12000 hours, and low maintenance costs
Transportation Equipment	Heavy-Duty Truck Cab Suspensions, Railway Freight Car Damping Systems	Improve driving comfort and buffer the impact of road bumps on the vehicle body	Anti-rupture structure design; in case of accidental air leakage, air is discharged slowly to ensure operation safety
Medical and Precision Equipment	Medical CT Scanners, Laboratory Vibration Testing Platforms	Achieve micro-amplitude control and prevent vibrations from affecting equipment detection accuracy	Consistency error of key parameters is ≤3%, strong vibration damping stability, meeting the needs of precision scenarios
Building Materials and Papermaking Industry	Paper Machine Dryers, Cement Rotary Kiln Support Devices	Balance the radial load of equipment, reduce operation resistance, and lower energy consumption	Energy consumption of supporting equipment can be reduced by 5%-8%, compatible with various installation methods such as flange type and bolt type
