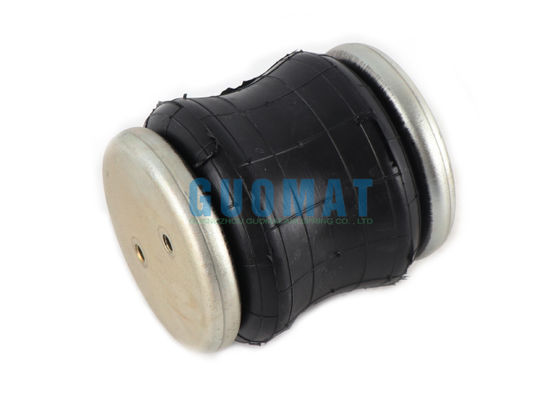

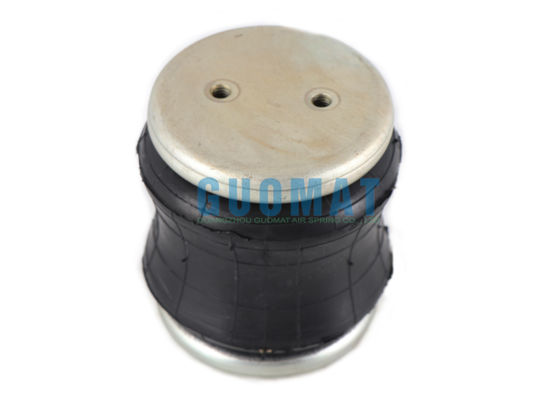

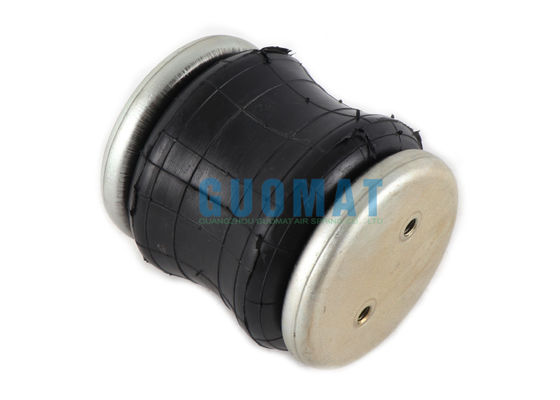

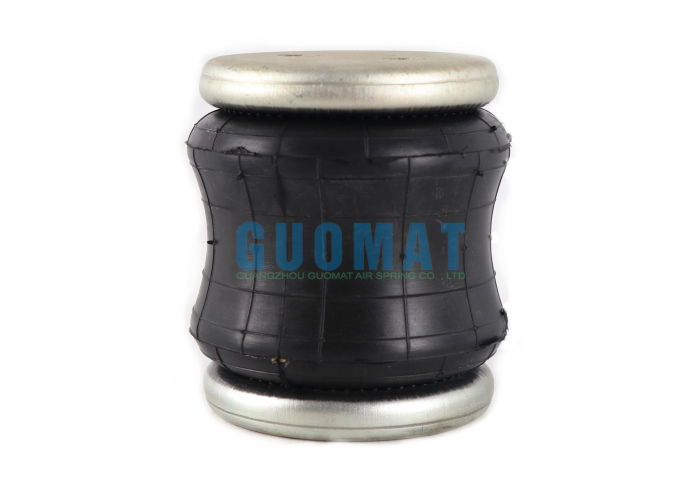

W013587725 Firestone Air Spring Actuator 141 Design Height Rubber Air Shock Repalcement

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	GUOMAT
인증:	ISO/TS16949:2009
모델 번호:	1B7725

결제 및 배송 조건:

최소 주문 수량:	6pcs
가격:	$49.9-59.9/pc
포장 세부 사항:	강력한 상자 상자 또는 고객이 필요로합니다
배달 시간:	2-8 일
지불 조건:	T/T, Western Union, L/C.
공급 능력:	1000pcs/주

상세 제품 설명

유형:	고무 에어 스프링, 복잡한 에어 스프링	보증:	12 개월
재료:	고무 + 스틸	포장:	상자/팔레트
내화 석재:	W01-358-7725	항공사:	3/8-16UNC
디자인 높이:	141mm	애플리케이션:	산업 기계를 위해
강조하다:	Firestone air spring actuator , Rubber air shock replacement , 141 design height air spring

W013587725 Firestone Air Spring Actuator 141 Design Height Rubber Air Shock Replacement

Product Specifications

Attribute	Value
Type	Rubber Air Spring, Convoluted Air Spring
Warranty	12 Months
Material	Rubber + Steel
Packing	Carton/Pallet
Firestone	W01-358-7725
Air Fitting	3/8-16UNC
Design Height	141mm
Application	For Industrial Machine

Product Details

Product Name: Air Spring

Manufacturer/Brand: GUOMAT

Model: 1B7725

Material: Natural Rubber

Warranty: 1 Year

End Fittings: Steel

Type: Industrial Bellows Air Spring

Main Function: Shock absorption, vibration isolation, load support, height adjustment

Application: Vibration isolation for industrial machinery

OEM Number: Firestone W01-358-7725 / W01 358 7725 / W013587725

Technical Specifications

Parameter	Value / Description
Top Cover Plate	Diameter: 114.8 mm
Bottom Cover Plate	Diameter: 114.8 mm
Threaded Holes	2×3/8-16 UNC
Air Fitting	1/4-18 NPTF
Center Distance Between Threaded Holes	44mm
Natural Height	141mm
Natural OD	126mm

Product Advantages

Original quality, precise match:
OEM Firestone W01-358-7725 - guaranteed to be identical to the original equipment design data, a complete replacement with reliable performance.
Excellent vibration damping:
Leveraging the compressibility of air, it provides excellent vibration and shock absorption. This significantly reduces noise and vibration generated by equipment operation.
Durability and reliable operation:
The high-quality rubber bladder offers excellent elasticity and fatigue resistance, suitable for various industrial environments.
Precise load support and height control:
By adjusting the internal air pressure, the equipment height and supported load can be precisely controlled to meet the needs of various working conditions.
Easy maintenance:
The rational design facilitates inspection and maintenance. As a standard OEM part, replacement is quick and easy.

Typical Applications

Vibration-absorbing bases for industrial punching machines and presses
Vibration isolation for precision measuring instruments and optical equipment platforms
Vibration isolation for large fans and pumps
Cushioning supports for vibrating screens and conveying systems
Height adjustment and vibration reduction for printing machinery and injection molding machines
Industrial platforms requiring precision leveling and load support

Product Images
