| Place of Origin: | GuangDong, China |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949:2009 |
| 모델 번호: | 1T8683 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| 가격: | $69.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| 지불 조건: | L/C, T/T, 웨스턴 유니온 |
| Supply Ability: | 1000pcs/week |
| 제품 이름: | 공기 스프링, 에어백 서스펜션, 가스 스프링 | Warranty: | 12 Months |
|---|---|---|---|
| 소재: | Rubber+Steel | Package: | Standard Packing or Customized |
| 스프링 타일: | 에어 라이드 서스펜션 시스템 | Sample: | Available |
| Application: | For Truck/Trailer | 뇌졸중: | 167mm-427mm |
| 강조하다: | 충돌 트럭 현가 장치 공기 스프링,W01-M58-8683 트럭 서스펜션 공기 스프링,887MK1 트럭 서스펜션 공기 스프링 |
||
887MK1 Contitech Truck Suspension Air Spring W01-M58-8683 Rubber Air Shock Absorber
Product Information
Product Name: Truck Air Spring
GUOMAT NO.: 1T8683
Factory Warranty: 1 Year
Application: Mounted on truck or trailer suspension
Firestone: W01-M58-8683 / W01 M58 8683 / W01M588683
Firestone: WO1-M58-8683 / WO1 M58 8683 / WO1M588683
Firestone: 1T15LNR3 / 1T 15LNR3
Contitech: 887MK1 / 887 M K1
Contitech: 60211
Airtech: 134782
Airtech: 38683K
Granning: 16224F
Meritor: MLF7053
VDL/DAF: 0392022
DAF: 0392022
1T8683 Truck Air Spring Technical Data
Top cover plate diameter | 239mm |
Bolt/Stud | M10X1.5 |
Air Inlet | M16X1.5 |
Center distance between studs | 134mm |
Bottom piston width | 192mm |
Piston | Steel |
Bottom piston height | 137mm |
Max.height | 427mm |
Min.height | 167mm |
The outer diameter | 231mm |
Is Air Suspension Harmful to Daily Driving?
Whether air suspension is "harmful" in daily driving depends on the specific usage scenario, vehicle purpose and personal needs. In general, air suspension itself does not cause direct harm to daily driving.
1.Advantages of air suspension (benefits for daily driving)
Improved comfort
Air springs can automatically adjust the hardness and softness according to road conditions, absorb bumps more efficiently, and are especially suitable for urban paved roads, providing a smoother ride experience.
Adjustable height
Raise the chassis to cope with rugged roads, or lower the body to improve high-speed stability, enhance passability and handling flexibility.
Load adaptation
Automatically adjust the suspension height when loaded to avoid "tail collapse" and keep the body posture balanced.
Sense of technology and luxury
Common in high-end models, enhance the "high-end" driving experience.
2. Precautions in daily driving
Avoid frequent adjustment of suspension height: Excessive use of the lifting function may accelerate component wear.
Regularly check the air circuit sealing: timely repair if the body tilts or the suspension alarm is found.
Be careful when passing through bad road conditions: it is recommended to slow down on large potholes or gravel roads to reduce the impact on the airbag.
When parking for a long time, pay attention to: keep the suspension at a normal height to avoid long-term compression and deformation of the airbag.

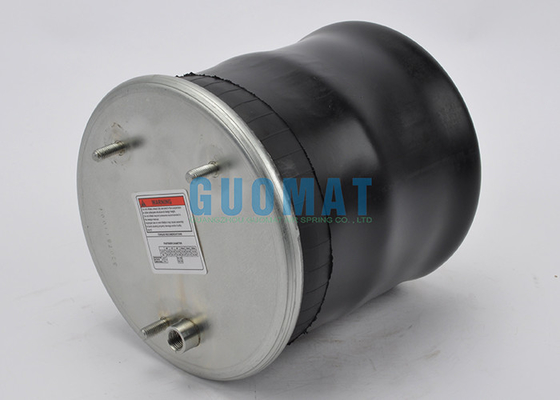

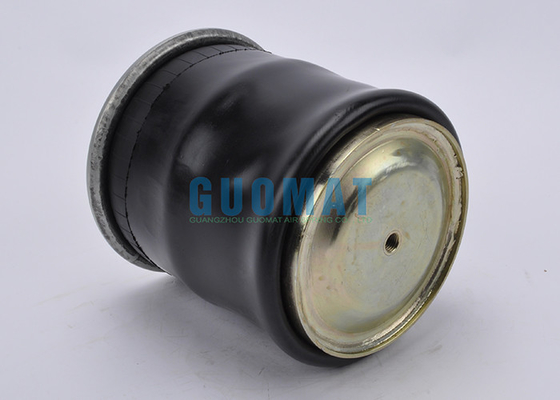

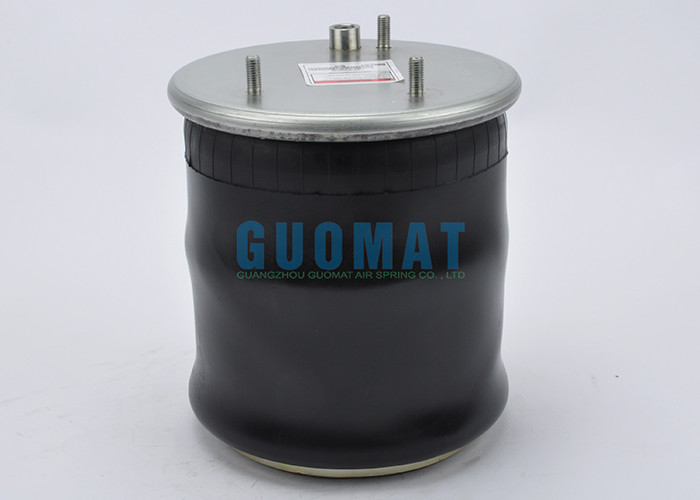

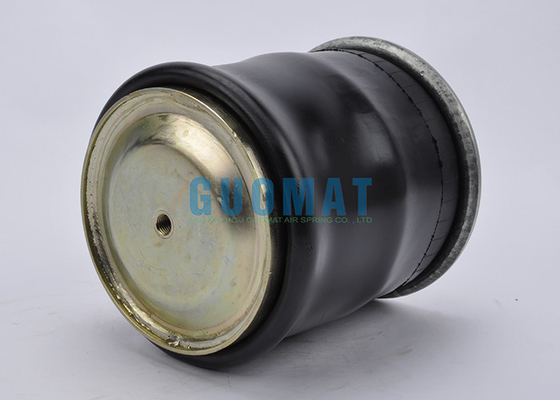

Product Picture
