| 원래 장소: | 광동, 중국 |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949:2009 |
| 모델 번호: | 2B4061 |
| 최소 주문 수량: | 1PC |
|---|---|
| 포장 세부 사항: | 고객 필요로 강한 판지 상자 또는 |
| 배달 시간: | 2-8 일 일 |
| 지불 조건: | T/T, 서부 동맹, Paypal 또는 다른 사람 |
| 공급 능력: | 1000 PC / 주 |
| 재료: | 강철 표지판, 고무 풀무 | Guomat 아니.: | 2B4061 |
|---|---|---|---|
| 풀무 아니.: | 스프링리데 DF 12 " x2 | Firestone: | W01-R58-4061 |
| 7개 바에 있는 지름 최대: | 265 밀리미터 | 압력 능력: | 0.2-0.8 MPa |
| 타격: | 325 밀리미터 | 공기 흡입구: | 1/2 BSP |
| 하이 라이트: | air ride helper bags DUNLOP S91541NB,air ride helper bags 2B4061,GIGANT 881202 truck helper bags |
||

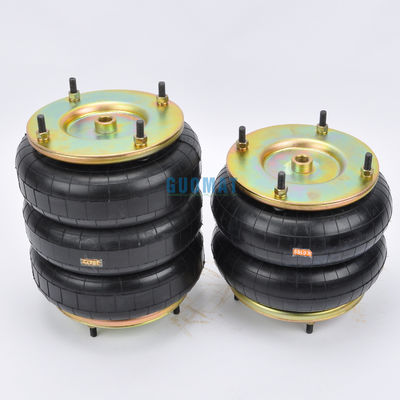

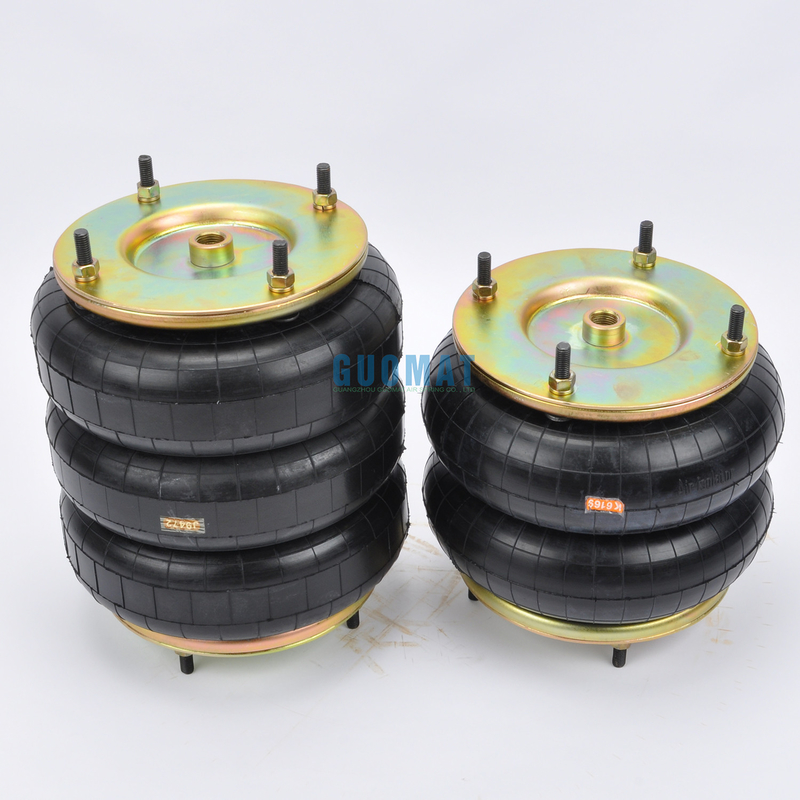

Firestone Air Spring W01-R58-4061 DUNLOP S91541NB GUOMAT 2B4061 GIGANT 881202
GUOMAT 2B4061 Cross other OEM:
Rubber NO.12 X 2
Firestone:W01-R58-4061
Firestone:W01 R58 4061
Firestone:W01R584061
Weight:6,84 KG
GIGANT 881202
WEWELER USN 510011KD LOHR
TROUILLET
DUNLOP S91541NB
DUNLOPSP921NB
Specifications and Detail Technical Parameters:Style12" x2
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2 BSP
❸ Cover Plate
Top Cover Plate Diameter (Width): 260 mm
Bottom Cover Plate Diameter (Width): 260 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Stroke of Rubber Bellows:74mm-400m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Other kinds of model air bellows:
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
Other models of ZF air springs:
| Air Spring NO. | Load | Design H. | Min. H. | Safe Elongation | Full Stroke |
| 350110ZF-2 | 65 | 130 | 65 | ||
| 250110ZF-2 | 65 | 130 | 65 | ||
| 500110ZF-2 | 11400 | 50 | 80 | 130 | 50 |
| 280110ZF-2 | 3009 | 65 | 60 | 125 | 65 |
| 200110ZF-2 | 1270 | 65 | 60 | 125 | 65 |
| 160110ZF-2 | 676 | 65 | 60 | 125 | 65 |
| 140110ZF-2 | 450 | 65 | 60 | 125 | 65 |
| 164152MF-3 | 80 | 180 | |||
| 110085MF-3 | 60 | 110 | 50 | ||
| 580180ZF-3 | 100 | 220 | 120 | ||
| 420210ZF-3 | 100 | 255 | |||
| 350170ZF-3 | 90 | 215 | 125 | ||
| 250170ZF-3 | 90 | 210 | 120 | ||
| 620210ZF-3 | 17430 | 120 | 120 | 240 | 120 |
| 530180ZF-3 | 12869 | 115 | 100 | 215 | 115 |
| 400180ZF-3 | 6901 | 115 | 100 | 215 | 115 |
| 280170ZF-3 | 2971 | 130 | 90 | 210 | 130 |
| 200170ZF-3 | 1221 | 130 | 80 | 210 | 130 |
| 110070ZF-3 | 453 | 41 | 50 | 91 | 41 |
| 140214MF-4 | 100 | 255 | |||
| 620285ZF-4 | 16972 | 185 | 145 | 330 | 185 |
| 420245ZF-4 | 4384 | 170 | 150 | 320 | 170 |
