| 원래 장소: | 중국 |
| 브랜드 이름: | GUOMAT |
| 인증: | ISO/TS16949:2009 |
| 모델 번호: | 3B7324 |
| 최소 주문 수량: | 교섭할 수 있습니다 |
|---|---|
| 가격: | Negotiable |
| 포장 세부 사항: | 고객 필요로 강한 판지 상자 또는 |
| 배달 시간: | 2-8 일 일 |
| 지불 조건: | T/T, 서부 동맹, Paypal 또는 다른 사람 |
| 공급 능력: | 1000pcs/week |
| 재료: | 알루미늄 합금 및 고무 | Firestone: | W01-358-7324 |
|---|---|---|---|
| 보증: | 12개월 | 정미중량: | 16.5 KG |
| 이명: | 공기 스프링 인더스트리얼 | 압력 능력: | 0.2-0.8 M Pa |
| 총 중량: | 18.5 KG | 플랜지 반지: | 와 |
| 연결 방법: | 플랜지 연결 | 콘티테크 FT 1710-38 RS: | FT 1710-38 RS |
| 하이 라이트: | W01-358-7324,FT 1710-38 RS 내화 석재 공기는 상승합니다 |
||

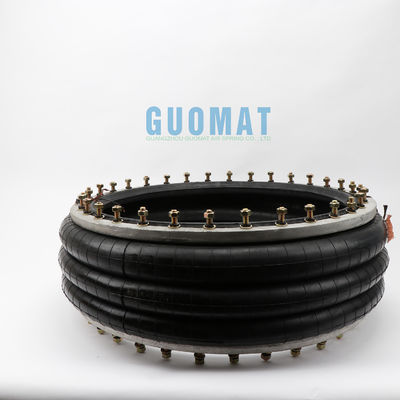

W01-358-7324 Firestone Air Spring Bellows NO. Style 320 Contitech FT 1710-38 RS For Heavy Lift Machine
Guomat 3B7324 Industrial Single Convoluted Air Spring Specifications
| Product Specifications | |
| Type: | 320 |
| Aluminum clamping ring: | 24 (3/8-24) BOL TS EACH RING |
| Bolt diameter Ø: |
482 mm / 19.0 inch |
| Board diameter: | 517 mm /
20.37 inch |
| Max diameter (OD) at 7 bar: | 569 mm /
22.42 inch |
| Min height: | 115 mm /
4.53 inch |
| Max height: |
495 mm / 19.5 inch |
| Stroke: | 380 mm /
14.97 inch |
❶Nut / Blind Nut
The Long Of The Nut:38 mm
Top Cover Plate Screw number: 24 pcs
Bottom Cover Plate Screw number : 24 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 482 mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 482 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter: 517 mm
Bottom Cover Plate Diameter:517 mm
❹Rubber Bellows
Rubber Bellows MAXl Diameter : 569mm
Rubber Bellows Natural Height :440 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With 2pcs Girdle Hoop
Style 320 Two Ply Bellows
Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:
W01-358-7324
;W01 358 7324
;W013587324
Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT:
W01-358-7276
W01 358 7276
W013587276
Rubber bellows only:
W01-358-0987;
W01 358 0987;
W013580987
Force to collapse to minimum height (@ 0 BAR):400 N.
Style 328 High Strength Con-struction:
Ribbed neck aluminum
Ribbed neck aluminum bead rings (equal spacing),17/8 bolts, nuts, washers:
W01-358-9528
W01 358 9528
W013589528
Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT
W01-358-9526
W01 358 9526
W013589526
Rubber bellows only
W01-358-1002;
W01 358 1002;
W013581002
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
